How to Install an L Shaped EPDM Flat Roof Video and Installation Guide

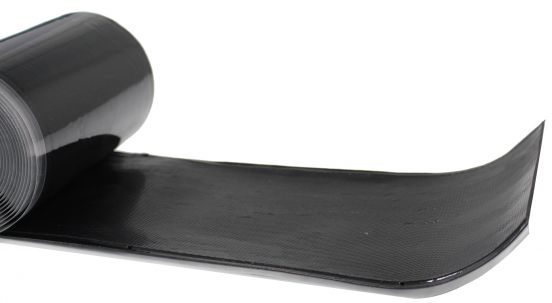

An internal corner is formed on an L shaped roof and this will require the 9" Elastoform tape.

Print these Instructions
  1. 1

    Cut EPDM

    Cut EPDM

    Cut the Rubber membrane in to the corner at an angle.

  2. 2

    Cut Elasoform Tape to Size

    Cut Elasoform Tape to Size

    Cut Elastoform Tape to size with a pair of scissors.

  3. 3

    Mark Position of Elastoform Tape

    Mark Position of Elastoform Tape

    Mark area to be primed allowing an extra 3-5mm on all edges.

  4. 4

    Apply Rubber Primer

    Apply Rubber Primer

    Apply Rubber Primer and ensure touch dry.

  5. 5

    Check Rubber Primer is Dry

    Check Rubber Primer is Dry

    Apply Rubber Primer and ensure touch dry.

  6. 6

    Install Elastoform Tape

    Install Elastoform Tape

    Install Elastoform Tape starting on the vertical drip and stretching the tape on to the roof deck. Apply pressure with silicon seam roller.

  7. 7

    Install Corner Trim

    Install Corner Trim

    Install Corner Trim if using Quicktrim system
