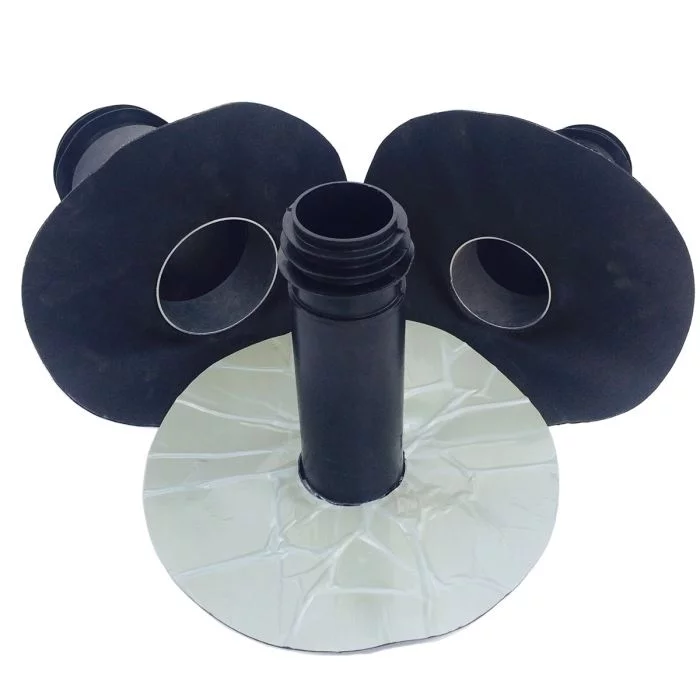

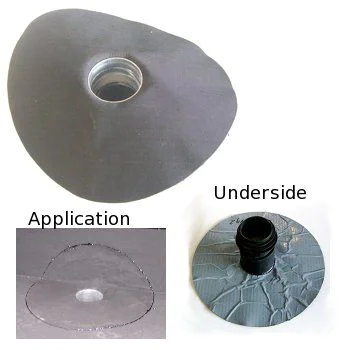

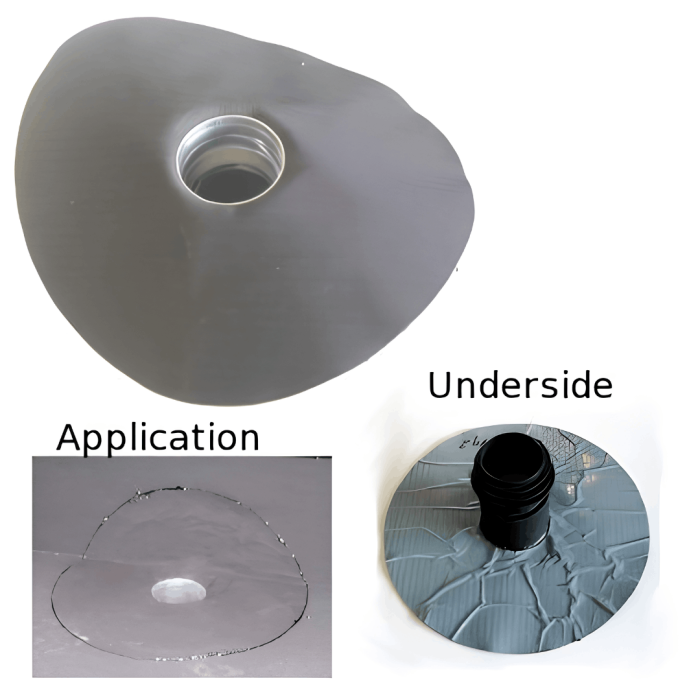

Self Adhesive Drain Outlet
Used For: Resitrix Self Adhesive EPDM drain outlets are used to join a downpipe to the EPDM membrane where the drain runs through the roof deck.
3 Size Options
- Width: 58-70mm Diameter Spigot (to fit 3" Down Pipe)
- Width: 78-90mm Diameter Spigot (to fit 3.5" Down Pipe)
- Width: 96-105mm Diameter Spigot (to fit 4" Down Pipe)
Material: Resitrix EPDM Rubber Membrane with Polypropylene spout
Installation Notes:
- Fit the membrane first
- Cut a hole in the membrane equal to the size of the outlet spigot to be used
- Install the drain outlet in position

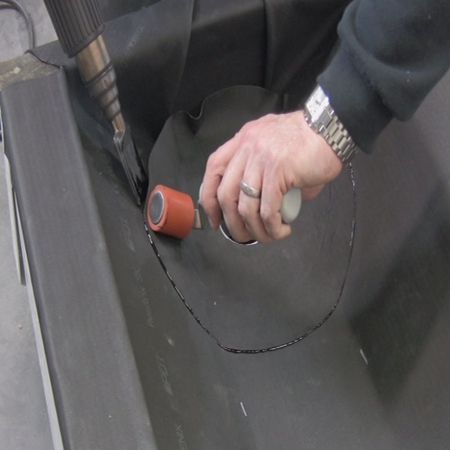

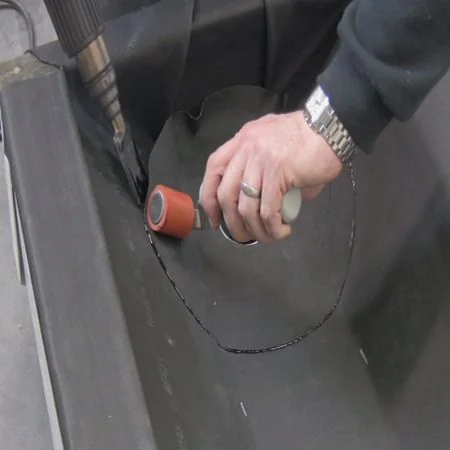

- Heat weld the flange to the main membrane working from the inside diameter to the edge.
An Overview
| SKU | RT-Drop |
|---|---|
| Stock Type | Warehouse Fulfilled |
| Brand Name | Resitrix |
| Material | n/a |
| Color | Black |
| System Compatability |
|
